InControl 2 Virtual Appliance

Private hosted SD-WAN Network Management Platform

InControl2 Virtual Appliance (ICVA) can be hosted on any private server hardware and is Peplink's endpoint management system. When connected to your devices, it aggregates data to generate useful reports on all aspects of your network. You can push configurations to any of your endpoints on a single screen. If you need to dig deeper, you can remotely access the web admin of any device on your network.

Using InControl, you can save configuration time, minimize truck rolls, stay on top of the status of your network, and proactively resolve any emerging problems with speed and precision.

A Wide Range of Capabilities

From SD-WAN network provisioning to SSID management, InControl gives you to complete control of your network from any web browser:

Zero Touch Configuration

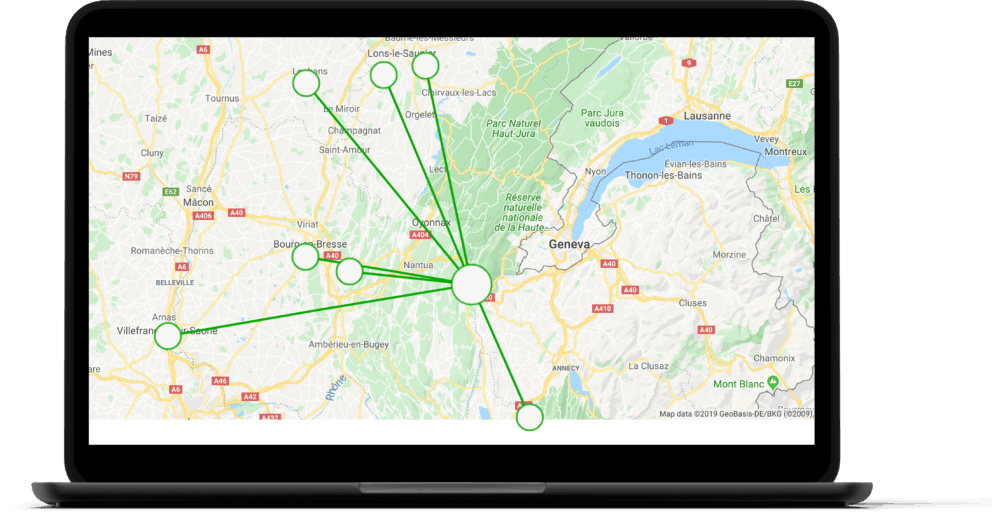

SD – WAN Provisioning

You are provisioning SD-WAN configurations to endpoints used to take hours. With InControl, you can now build your PepVPN network in one minute. Simply open the PepVPN configurator, select your topography, and select your peers.

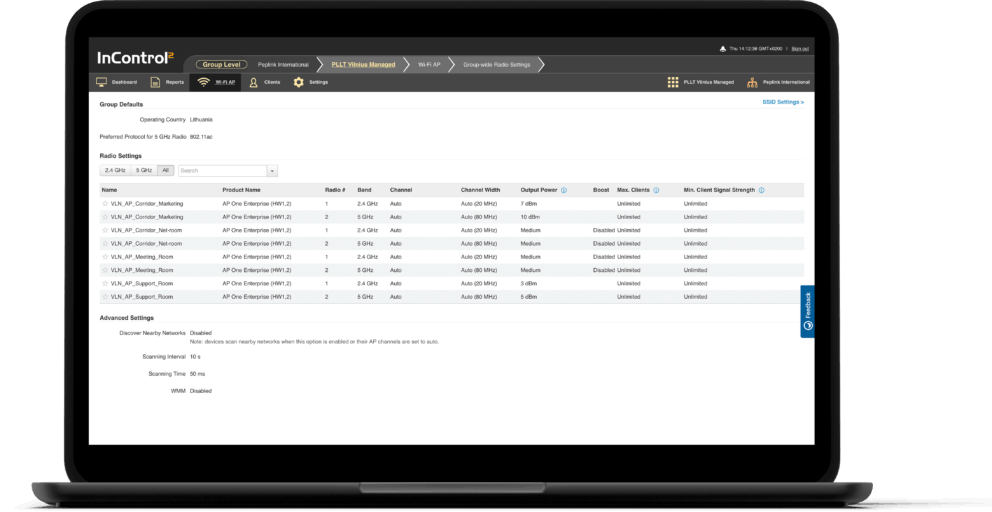

Zero Touch Configuration

InControl simplifies network management by aggregating and presenting network information in easy-to-read reports. Push configuration and firmware updates to hundreds of devices with a click of a button and apply schedules to SSID, Wi-Fi radios, and SD-Switch ports.

SD – WAN Provisioning
GPS Fleet Management

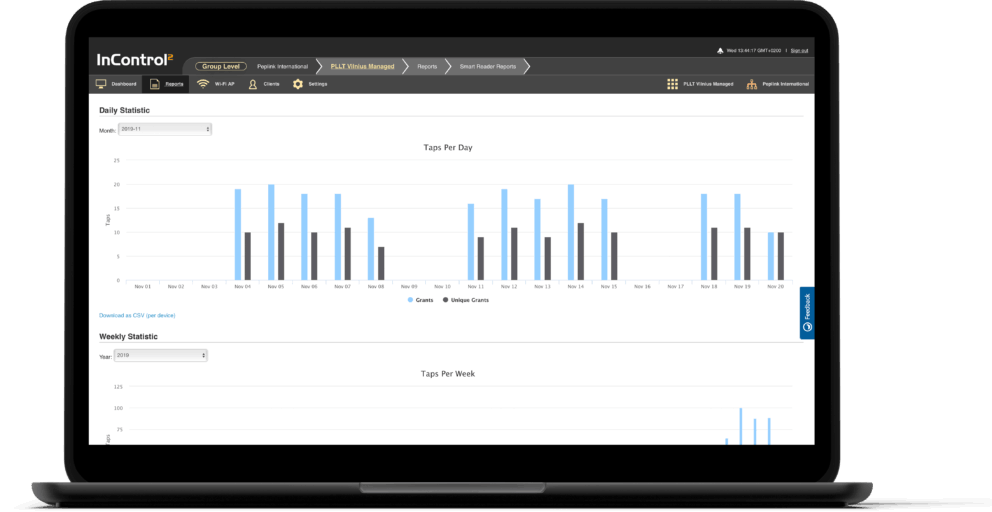

Network Troubleshooting

Set up email notifications for important network events. Monitor WAN quality and bandwidth usage using intuitive graphical reports. InControl 2 provides detailed logs of your network’s events and operations. Finally, the Remote Web Admin feature lets you directly access the WebUI of any device, saving truck rolls.

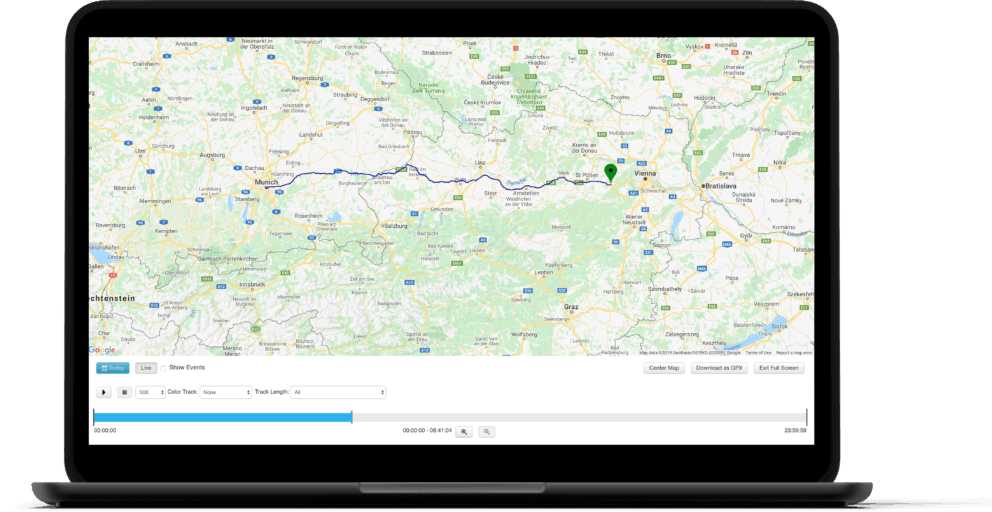

GPS Fleet Management

InControl 2 provides full-fleet device management when combined with our vehicle-mounted, GPS–enabled devices, such as the MAX HD2 and BR1. Track your devices wherever they are using our interactive maps. Check vehicle speed, cellular coverage, and traffic conditions—playback complete route histories for any time period.

Network Troubleshooting
InControl2

A breakthrough digital product in your customers’ hands within 100 days

InControl is hosted at Amazon Web Services in the US. Please contact us for enterprise deployments that require a privately hosted version of InControl. ICVA also supports REST API, enabling easy integration with your existing systems.

InControl2 Virtual Appliance (ICVA) can be hosted on any private server hardware, giving network administrators complete management and control over sensitive data and security

Hardware Requirements

The minimum memory requirement is 8 GB for the InControl VM. Systems with memory less than 8 GB are not recommended. The system stability and performance may be affected.
Important: The actual system requirement depends on not only the number of devices but also the devices’ functionality and usage. E.g. GPS data availability, the number of cellular WANs, the number of client connections per hour, etc. The resource requirements for Pepwave MAX tend to be higher than those for Peplink Balance and Pepwave AP One. The above requirement figures are for average usage.

For up to 100 devices

FeaturesInControl VMDatabase VM
CPUDual-core minimum. Quad-core preferredDual-core minimum. Quad-core preferred
Memory Size8 GB8 GB
System Disk Size24 GB24 GB
Data Disk Size20 GB100 GB

For up to 1000 devices

FeaturesInControl VMDatabase VM
CPUQuad-core 3.4 GHz XeonQuad-core 3.4 GHz Xeon
Memory Size16 GB12 GB
System Disk Size24 GB24 GB
Data Disk Size30 GB1 TB

For up to 1000 devices

FeaturesInControl VMDatabase VM
CPUQuad-core 3.4 GHz XeonQuad-core 3.4 GHz Xeon
Memory Size64 GB32 GB
System Disk Size24 GB24 GB
Data Disk Size40 GB5 TB
