Poynting - Lion Series

Future 5G/LTE antenna deployments





The Lion Antenna will be available in August 2022.



Poynting logo
Poynting lion series

Poynting Antennas is proud to introduce you to their new XPOL-24 antenna, 4x4 MIMO, uni-directional 5G/LTE antenna.

The XPOL-24 is Poynting Antennas' first 4x4 MIMO uni-directional 5G/LTE antenna. The antenna makes use of our very popular XPOL-2-5G antenna and offers ultra-wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The 4x4 MIMO capability adds to the exceptional performance of the antenna. The antenna elements are cross-polarized with vertical, horizontal, and ±45° polarisations with spatial separation for improved diversity and decorrelation.

The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously.

The XPOL-24 adds to Poynting's current XPOL antenna range and no antenna will be discontinued.

The radiation patterns of the XPOL-24 are uni-directional and well controlled across the entire frequency range of operation. The combination of the uni-directional radiation pattern, with the high gain across the wideband coverage, enables superb coverage for FWA deployments. The measured results from the antenna are illustrated below.

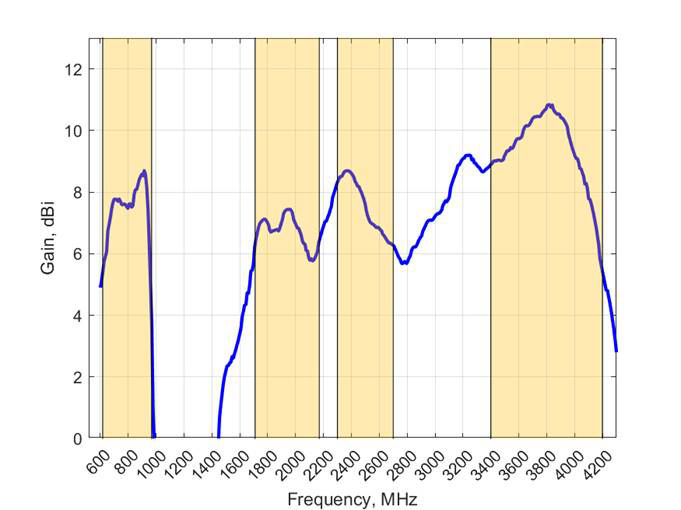

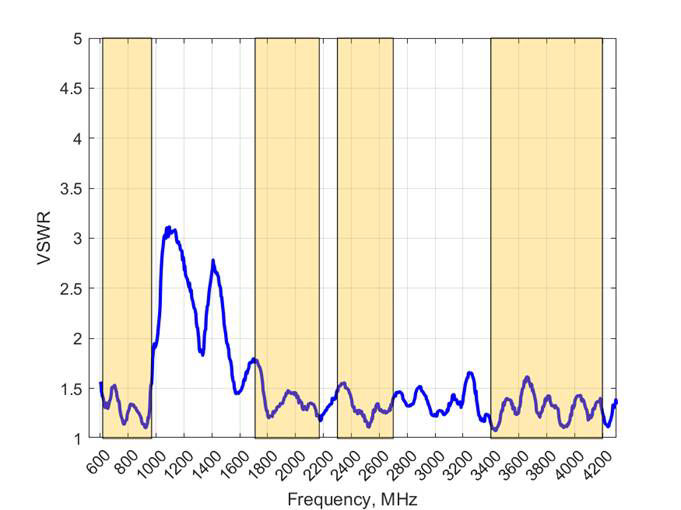

Measured VSWR Measured Peak Gain

X-POLARISED, UNI-DIRECTIONAL 4X4 MIMO 5G/LTE ANTENNA

617 – 960 MHz & 1710 - 4200 MHz, Peak Gain: 11dBi

5G Antenna
Band 71 Antenna
uni Directional Antenna
mimo
Poynting OMNI-904

Please email us at poynting@advantesco.com for more information on the Lion series of antennas.
