Pepwave MAX HD series

Multi-cellular powerhouse for mission-critical connectivity

Solutions For Your Business

The Pepwave MAX HD series of industrial wireless 4G routers are designed to provide secure WAN access in environments where wired solutions are too expensive to deploy. Additionally the series feature GPS fleet tracking, serial-to-IP terminal services, VPN security, and a wide temperature range. These features make them ideal for enabling fleet management, video surveillance,

Internet of Things (IoT) and machine-to-machine M2M deployments. InControl central management simplifies your network, making it scalable while SpeedFusion VPN protects the integrity of remote access and connectivity to critical devices.

Features of Pepwave Max devices

SpeedFusion Bandwidth Bonding

SpeedFusion Bandwidth Bonding combines all connected bandwidth into a single superfast stream, using the same or different providers.

Dual SIM Slots

Dual SIM slots allow you to use two SIM cards for each single cellular modem, increasing your coverage.

Terminal Block

Serial-capable terminal blocks assist in securing power to the device as well as enabling M2M device communication.

Built Tough

MAX industrial 4G routers can withstand punishment and extreme temperatures. IP67 outdoor routers can take on any environment.

GPS Fleet Tracking

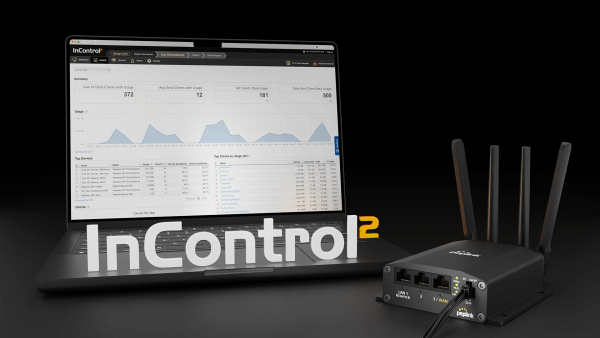

Use InControl2 to keep tabs on the location of each vehicle and manage your mobile network from any Internet-connected device.

Multiple Certifications

Certifications include: FCC, CE, RoHS, E-Mark, Shock and Vibration Resistance, Railway Applications, and Electromagnetic Compatibility.

here you would see a picture of Firstnet ready HD4 MBX picture

Approved for UK Public Safety

Peplink has three routers certified for use in UK’s Emergency Services Network (ESN): the HD2 MBX, the HD4 MBX and the BR1 ESN. These routers have been approved for use in the country’s fleet of first responders and emergency service vehicles.

Unbreakable FirstNet Ready SD-WAN

FirstNet is the national public safety network, helping law enforcement, firefighters and EMS save lives and protect communities across the United States. The FirstNet network is a secure broadband network dedicated to public safety.

here you would see the picture of BR1 and MBX ESN approval

Peplink / Pepwave Cellular Devices

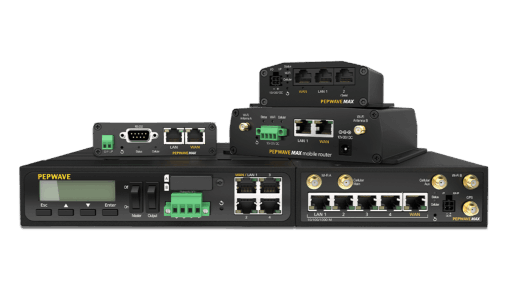

MAX BR1 Series

The Best-Kept Secret in Business Rugged Connectivity

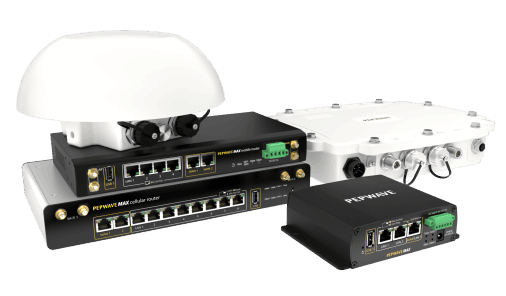

MAX HD Series

Heavy Duty, Multi-Cellular Powerhouses for Mission Critical Connectivity

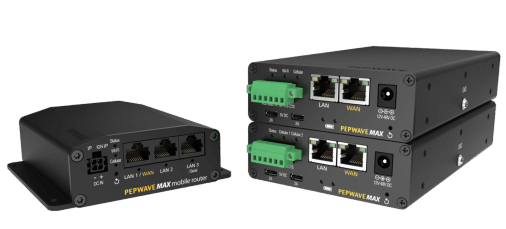

MAX Transit Series

Built and Certified for Transportation Industry

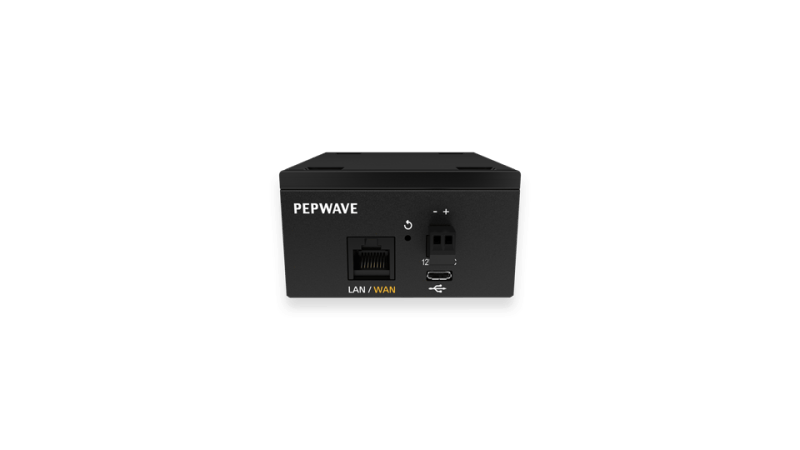

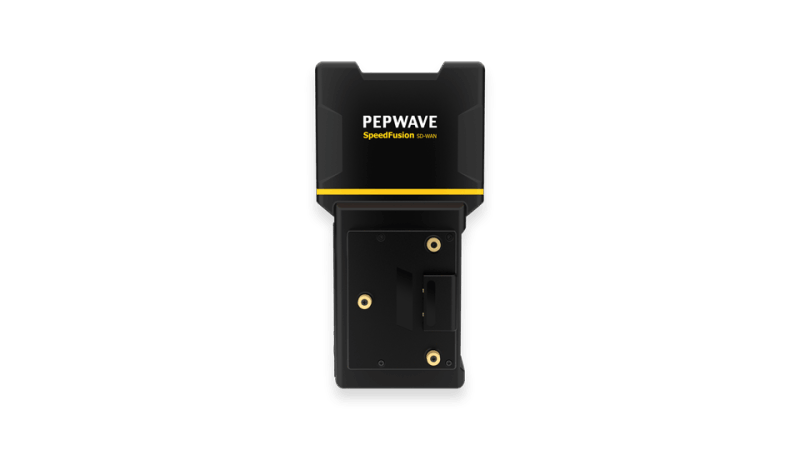

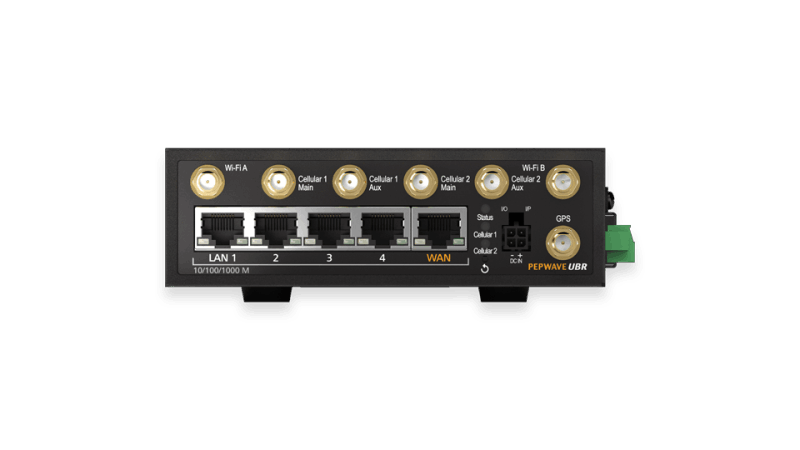

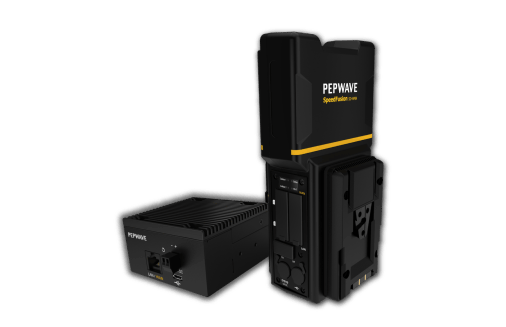

UBR & SpeedFusion engine

Unbreakable Connectivity Right Out of the Box - Integrate SpeedFusion Into Any System

MAX BR1 Classic

The Original BR1. Still Among The Best.

The BR1 Classic comes with a rugged metal enclosure, and a wide range of certifications at an affordable price.

Industrial-Grade Router
Automatic WAN and IPsec Failover
1x Embedded LTE/A Modem
1x Ethernet WAN
802.11bgn Wi-Fi AP
GPS/Fleet Tracking
Full Antenna Set

Product code:

MAX-BR1-LTEA-W-T (Worldwide/ CAT-6)

MAX-BR1-LTE-E-T (Europe / Int. / CAT-4)

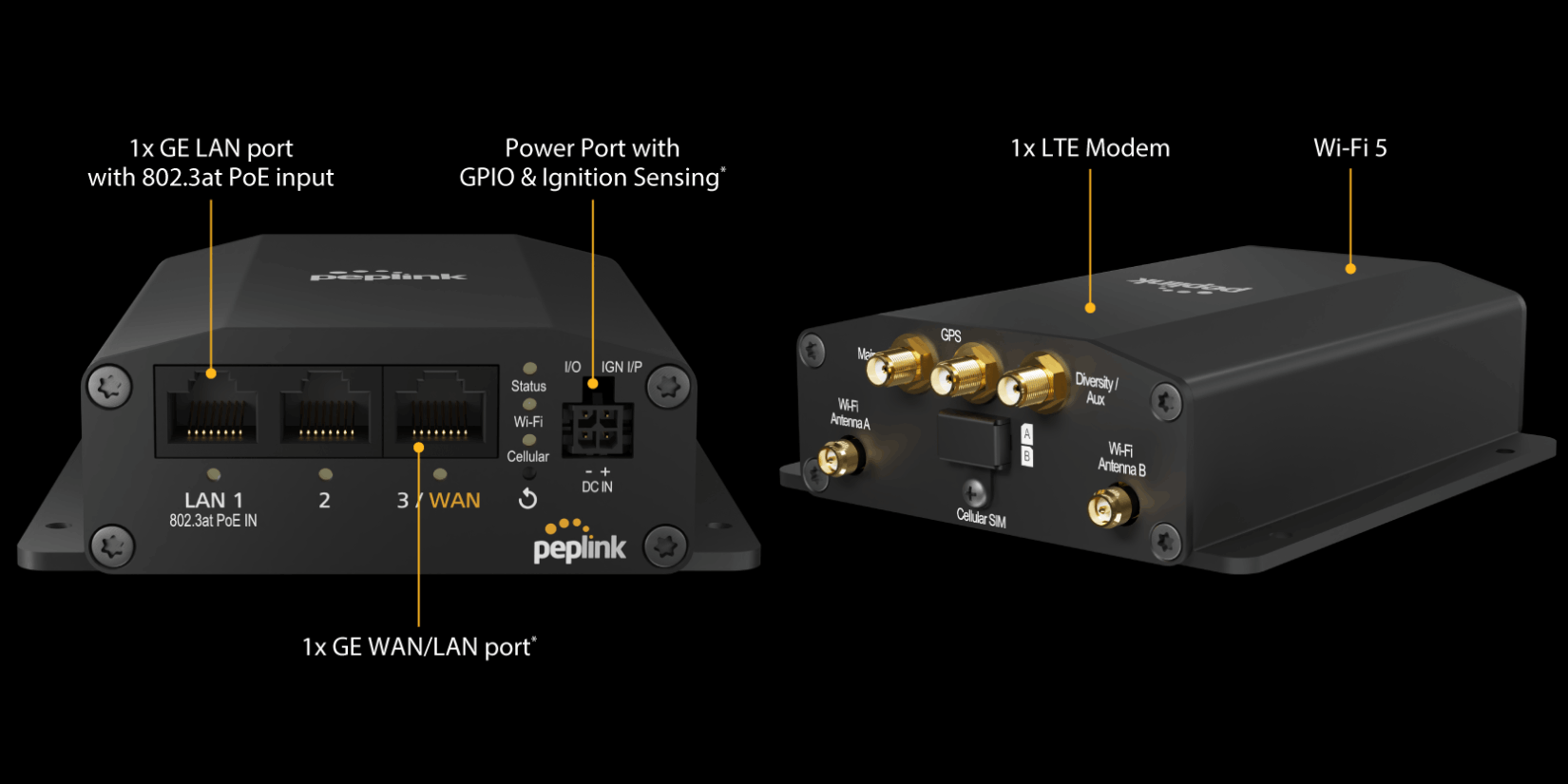

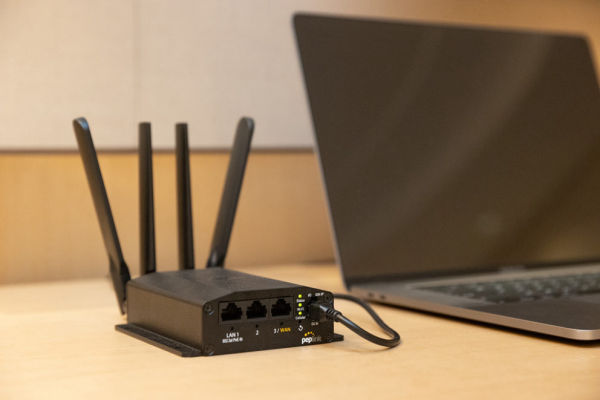

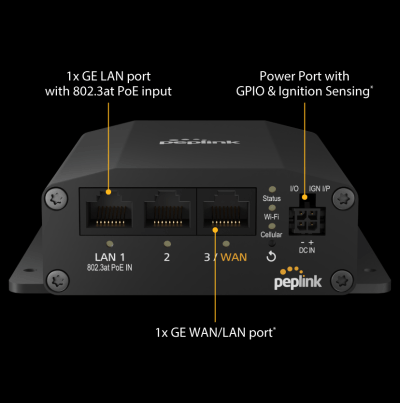

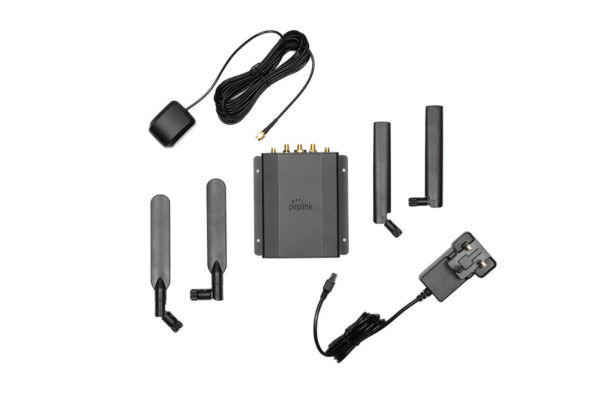

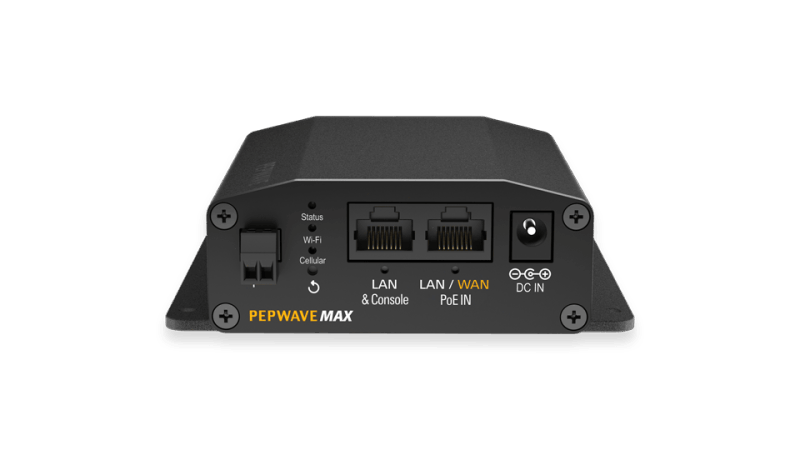

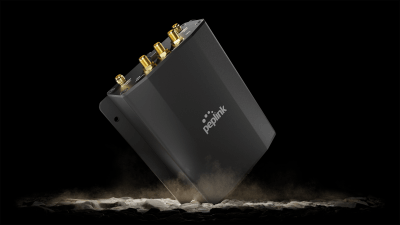

MAX BR1 Mini

Best value in industrial grade connectivity.

At last — an affordable, industrial-grade LTE router for transportation, digital signage, automated kiosk, and M2M deployments. From 3G to LTE, the BR1 Mini supports a wide range of cellular standards and worldwide frequencies to meet your every need. Enjoy GPS fleet, usage reports, and statistics.

Industrial-Grade 4G LTE/A Router
1x Embedded 4G LTE/A Modem
1x Optional Ethernet WAN
Optional WAN Failover
802.11bgn Wi-Fi AP
GPS/Fleet Tracking
Full antenna set

Product code:

MAX-BR1-MINI-LTE-US-T (United States)

MAX-BR1-MINI-LTE-E-T (Europe/Int.)

MAX-BR1-MINI-LTEA-W-T (Americas/Europe)

MAX-BR1-MINI-LTEA-P-T (Asia Pacific)

MAX BR1 Mini Core

Best value in industrial grade connectivity.

Unbreakable Connectivity. Unbeatable Price.

Industrial-Grade 4G LTE Router
1x Embedded 4G LTE Modem
1x Optional Ethernet WAN
Optional WAN Failover
GPS/Fleet Tracking
Full antenna set

Product code:

MAX-BR1-MINI-LTE-US-T-M (United States)

MAX BR1 MK2

Industrial Grade Cellular. Dual-Band Wi-Fi.

The MAX BR1 MK2 offers redundant SIM slots with automatic switching, DC or terminal block power capability, advanced GPS fleet tracking, and remote management, all packed into a durable metal enclosure. It is also Verizon certified.

Industrial-Grade M2M 4G Router
Automatic WAN and IPsec Failover
1x Embedded 4G LTE Modem
1x Ethernet WAN
802.11ac/a/n Wi-Fi AP
Full antenna set

Product code:

MAX-BR1-MK2-LTEA-W-T (Worldwide)

MAX-BR1-MK2-LTEA-P-T (Asia Pacific)

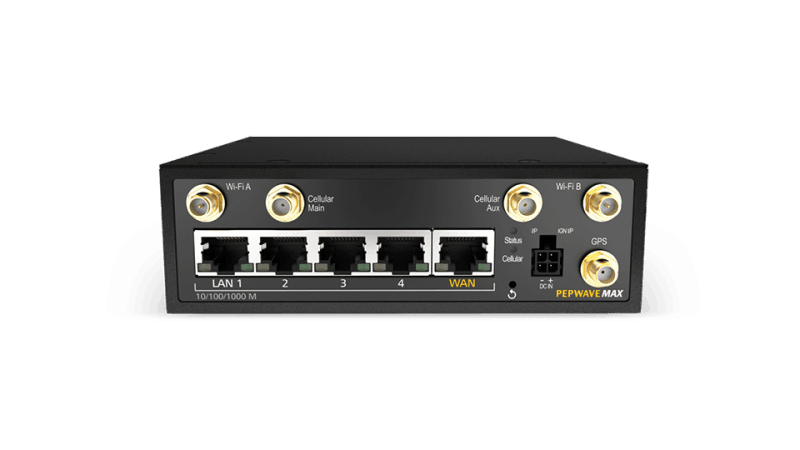

MAX BR1 Pro

More Ethernet Ports for More Devices.

The MAX BR1 Pro comes with 4-port LAN switch and automatic failover, making it an ideal choice for deployments that demand outstanding reliability and flexibility..

Versatile Single Cellular Router with High Port Capacity
1x GE WAN ports
4x GE LAN ports
1x LTE-A modem
120 Mbps Router Throughput

Product code:

MAX-BR1-PRO-LTEA-W-T (Worldwide/CAT-6)

MAX-BR1-PRO-LTEA-P-T (Asia Pacific/CAT-6)

MAX-BR1-PRO-LTE-E-T (Europe/ Int./CAT-4)

MAX BR1 ENT

Pure LTE performance for Enterprise Failover.

The MAX BR1 ENT delivers blazing 300Mbps router throughput with automatic failover to LTE and comes without Wi-Fi, making it an ideal choice for deployments that demand high performance, and outstanding reliability. It is also Verizon XLTE certified.

Industrial-Grade M2M 4G Router
1x Embedded 4G LTE Modem (Europe and Int'l GSM)
1x Ethernet WAN
GPS/Fleet Tracking
Full antenna set

Product code:

MAX-BR1-ENT-LTE-E-T (Europe/Int.)

MAX-BR1-ENT-LTEA-W-T (Americas/Europe)

MAX-BR1-ENT-LTEA-P-T (Asia Pacific)

MAX-BR1-ENT-LTEA-R-T (America/FirstNet Ready)

MAX-BR1-ENT-LTEA-K-T (Global)

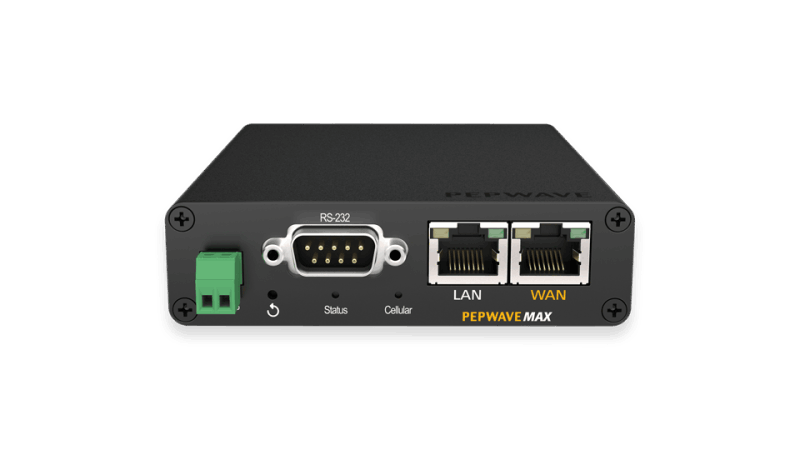

MAX BR1 M2M

When you need a DB9 serial.

The MAX BR1 M2M is compact (1.1 x 3.8 x 4.8 inches), and tough enough to be placed anywhere. It features a 9-pin serial connector for easy and durable M2M connectivity. Also, it can be remotely monitored and managed using InControl 2 Cloud management, saving service trips.

1x Embedded 4G LTE Modem
No GPS

Product code:

MAX-BR1-M2M-LTE-E-T (Europe/Int.)

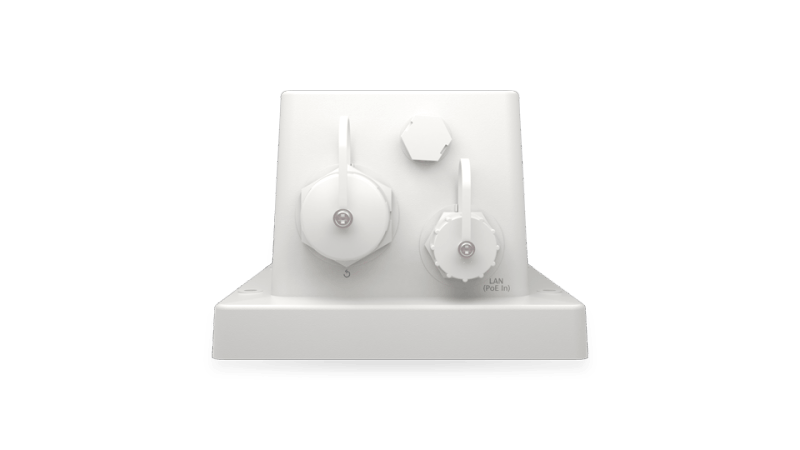

MAX BR1 IP67

Gets No Attention. Needs No Attention. Just Keeps Running.

The BR1 IP67 outdoor router offers an embedded cellular modem in a tough IP67 enclosure, making this the most accessible of our IP67 rated cellular router family.

Industrial-Grade Outdoor 4G LTE Router
Hot Failover Included
IP67 enclosure

Product code:

MAX-BR1-LTE-E-IP67 (Europe/Int.)

MAX-BR1-LTEA-W-IP67 (Americas/ Europe)

MAX-BR1-LTEA-P-IP67 (Asia Pacific )

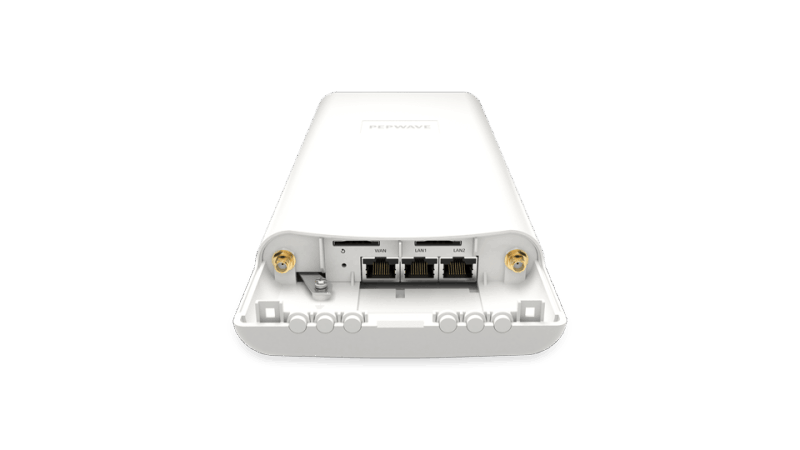

MAX BR1 IP55

Single Cellular Outdoor Router

The BR1 IP55 includes built-in PoE input and a 3-port LAN switch to reduce clutter and the need for extra equipment. 802.3at PoE+ output is optional add-on, so one wire is all you need for both connectivity and power you can share with security cameras and other devices.

Outdoor Cellular/M2M 4G LTE Router
Automatic WAN and IPsec Failover
1x Embedded 4G LTE Modem
1x Ethernet WAN
802.11bgn Wi-Fi AP, Switchable Directional or Omni Antenna
IP55 Enclosure, Passive PoE Input
PoE Injector Available Separately

Product code:

MAX-BR1-LTEA-W-IP55 (Europe / CAT-6)

MAX-BR1-LTEA-P-IP55 (Asia Pacific / CAT-6)

MAX-BR1-LTE-E-IP55 (Europe / Int /CAT-4)

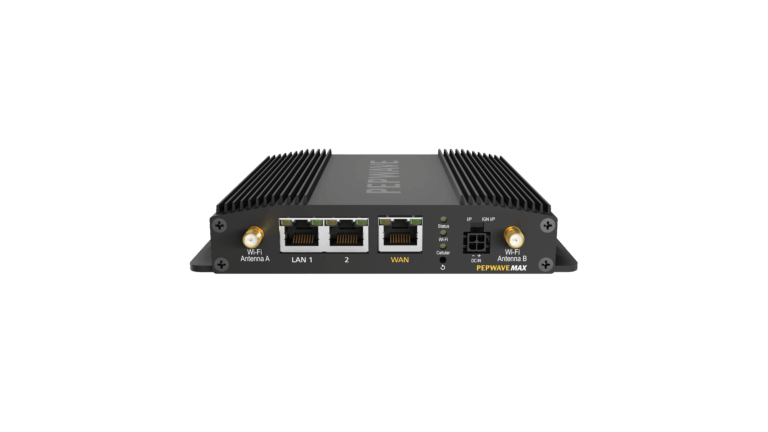

MAX BR1 Pro 5G

Balance your fixed network with 5G wireless WAN

Here LTE gets Sonic.

1x 5G Modem (Global) with Redundant SIM Slots
1x Ethernet WAN (can act as a LAN port if needed)
2x2 MIMO Simultaneous Dual-Band, Wi-Fi 6
1Gbps Router Throughput
Full antenna set

Product code:

MAX-BR1-PRO-5GD-T-PRM

MAX-BR1-PRO-5GH-T-PRM

MAX-BR1-PRO-GLTE-S-T-PRM

Pepwave MAX HD Series

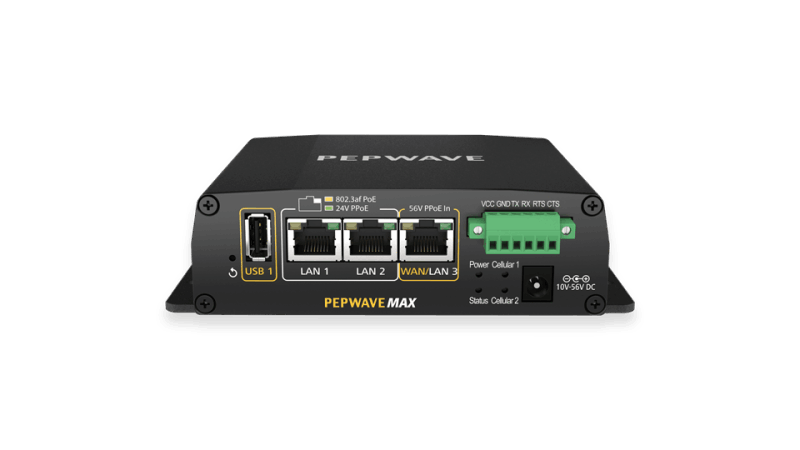

HD2 Mini

Dual LTE/A. Compact and Powerful.

The MAX HD2 Mini packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.

Multi-Cellular Router (4 WAN)
1x USB, 1x Ethernet WAN
2x Embedded 4G LTE/A Modem
Full Antenna Set
PoE Injector Available Separately

Product code:

MAX-HD2-MINI-LTE-E-T (Europe/International)

MAX-HD2-MINI-LTEA-W-T (Americas/Europe)

MAX-HD2-MINI-LTEA-P-T (Asia Pacific)

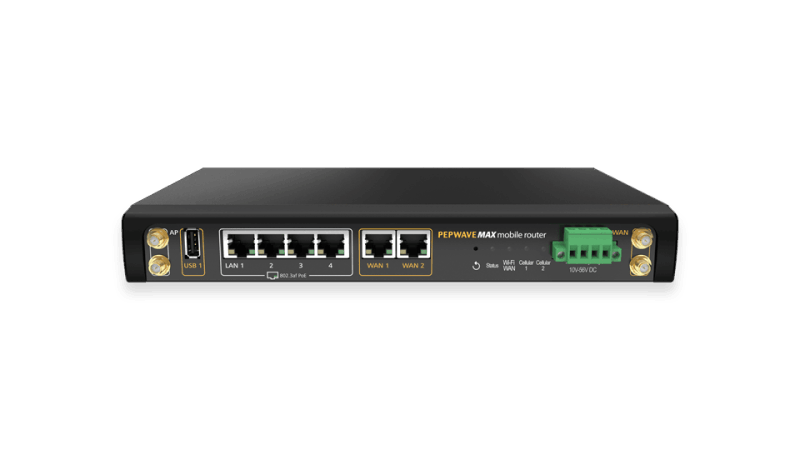

HD2

Dual-Cellular Pioneer

The MAX HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems and SpeedFusion, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments.

Multi-Cellular Bandwidth Bonding Router (6 WAN)
SpeedFusion Bandwidth/VPN Bonding
1x USB, 2x Ethernet, Wi-Fi WAN
2x Embedded 4G LTE/A Modem
802.11ac Wi-Fi AP
Optional 4x 802.3af PoE Ports
Full antenna set

Product code:

MAX-HD2-LTE-E-T (Europe / Int. /CAT-4)

MAX-HD2-LTEA-W-T (Worldwide /CAT-6)

MAX-HD2-LTEA-P-T (Asia Pacific /CAT-6)

MAX-HD2-LTEA-WF-T (US / FirstNet /CAT-12 -6)

MAX-HD2-LTEA-WK-T (Global* /CAT-12 / CAT-6)

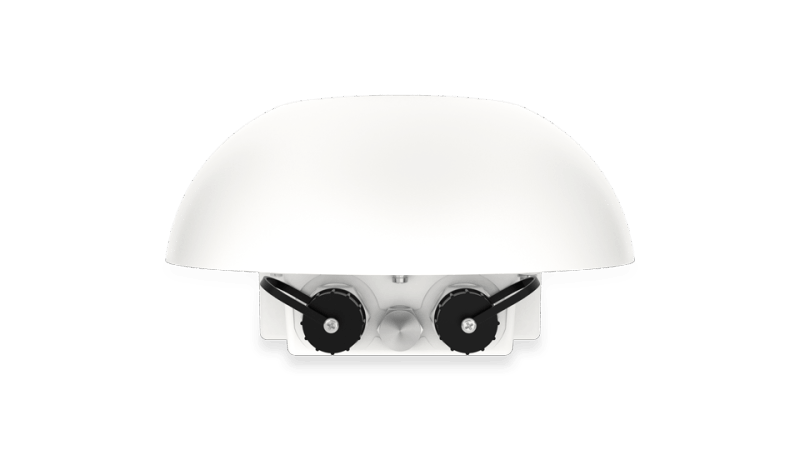

HD1 Dome

Single Cellular. Embedded Antennas. Neat and Simple.

The HD1 Dome provides single-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD1 Dome supports single cellular radios and four SIM cards. Combine the HD1 Dome with the SIM Injector, and the number of cards increases to twelve.

Dual Cellular Outdoor Router
SpeedFusion Bandwidth/VPN Bonding
1x Embedded 4G LTEA Modems
1xEthernet LAN
IP67 Enclosure

Product code:

MAX-HD1-DOM-M-GLTE-G (Global / CAT-18)

SIM-BK8-4E-56V (SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC)

HD2 Dome

Dual Cellular. Embedded Antennas. Neat and Simple.

The HD2 Dome provides dual-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD2 Dome supports two cellular radios and four SIM cards. Combine the HD2 Dome with the SIM Injector, and the number of cards increases to twelve.

Dual Cellular Outdoor Router
SpeedFusion Bandwidth/VPN Bonding
2x Embedded 4G LTE/A Modems
1xEthernet LAN
IP67 Enclosure

Product code:

MAX-HD2-DOM-M-LTE-E (Europe /Int. / CAT-4)

MAX-HD2-DOM-M-LTEA-W (Worldwide / CAT-6)

MAX-HD2-DOM-M-LTEA-P (Asia Pacific /CAT-6)

MAX-HD2-DOM-M-LTEA-WF

(America / FirstNet / CAT-12-6)

MAX-HD2-DOM-M-LTEA-WK

(Global /CAT-12-6)

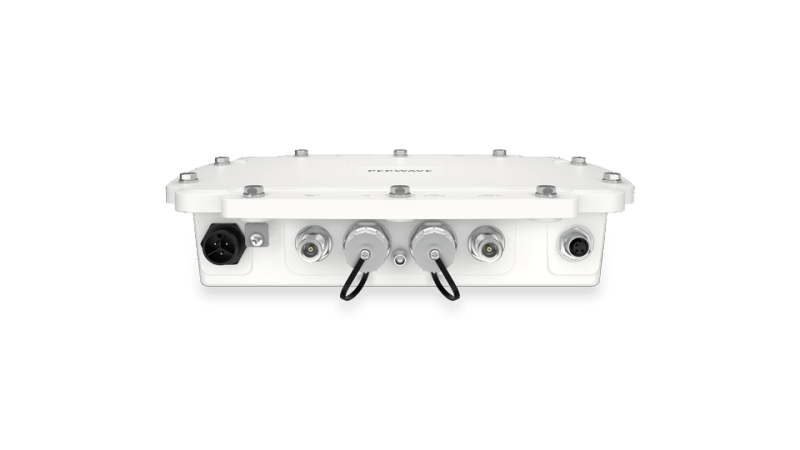

HD2 IP67

Durability Under Adverse Conditions

The HD2 IP67 outdoor router offers dual embedded cellular modems and PoE+ support, all encased in a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

Tough Multi-Cellular Outdoor Router
4 x Embedded 4G LTE/A Modem
SpeedFusion Bandwidth/VPN Bonding
IP67 Enclosure
1x GE LAN with PoE, 1x GE WAN
PoE Injector Available Separately
with GPS
No Wifi
Mounting Kit

Product code:

MAX-HD2-M-LTE-E-IP67 (Europe /Int. / CAT-4)

MAX-HD2-M-LTEA-W-IP67 (US/Europe / CAT-6)

MAX-HD2-M-LTEA-P-IP67 (Asia Pacific / CAT-6)

MAX-HD2-M-LTEA-WF-IP67

(America / FirstNet / CAT-12 / CAT-6)

MAX-HD2-M-LTEA-WK-IP67

(Global / CAT-12 / CAT-6)

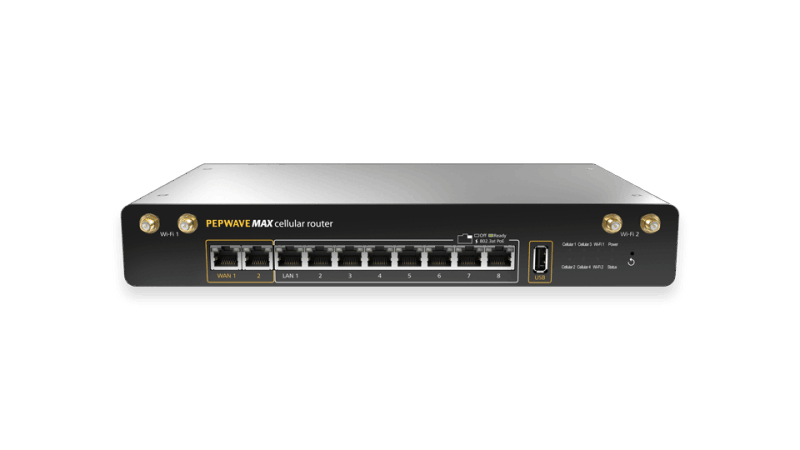

HD4

Market Proven Quad 4G LTE/A Mobile Router

The MAX HD4 delivers outstanding performance from all your connections with the help of SpeedFusion bandwidth bonding and intelligent load balancing.

Vehicular Quad-Cellular Bandwidth Bonding Router
4x Embedded 4G LTE/A
SpeedFusion Bandwidth/VPN Bonding
1x USB, 2x Ethernet, 1x 802.11agn Wi-Fi WAN
8-Port GE LAN Switch
1x 802.11agn Wi-Fi AP
Full Antenna Set

Product code:

MAX-HD4-LTE-E-T (Europe /Int. /CAT-4)

MAX-HD4-LTEA-W-T (Worldwide /CAT-6)

MAX-HD4-LTEA-P-T (Asia Pacific /CAT-6)

MAX-HD4-LTEA-WF-T (US / FirstNet /CAT-12-6)

MAX-HD4-LTEA-WK-T (Global* /CAT-12-6)

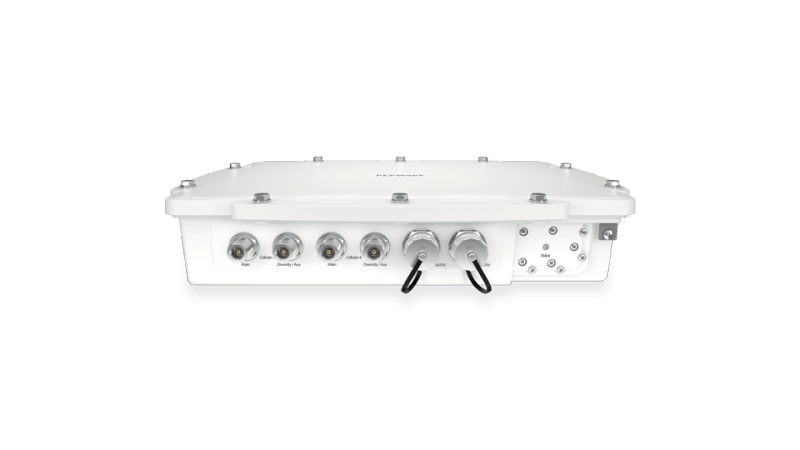

HD4 IP67

Quad Cellular Performance Under Adverse Conditions

The HD4 IP67 outdoor router offers quad embedded cellular modems and PoE support, all encased in a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

Tough Multi-Cellular Outdoor Router
4 x Embedded 4G LTE/A Modem
SpeedFusion Bandwidth/VPN Bonding
IP67 Enclosure
1x GE LAN with PoE, 1x GE WAN
PoE Injector Available Separately
with GPS
No Wifi
Mounting Kit

Product code:
MAX-HD4-M-LTE-E-IP67

(Europe / International/ CAT4)

MAX-HD4-M-LTEA-W-IP67

(Worldwide / CAT6)

MAX-HD4-M-LTEA-P-IP67W

(Asia Pacific / CAT6)

HD4 MBX

Quad Cellular Gigabit LTE Mobile Powerhouse

The HD4 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.

Quad 4G LTE-A Pro Mobile Powerhouse
4x Embedded 4G LTEA Modem
SpeedFusion Bandwidth/VPN Bonding
2x USB, 3x Ethernet, 1x 802.11ac Wi-Fi WAN
9-Port GE LAN Switch
1x 802.11ac Wi-Fi AP
Full Antenna Set

Product code:

MAX-HD4-MBX-LTEA-R-T

(America / FirstNet Ready / CAT-12)

MAX-HD4-MBX-LTEA-K-T (Global*/ CAT-12)

MAX-HD2-MBX-GLTE-G-T (Global / CAT-18)

MAX-HD4-MBX-GLTE-G-T (Global / CAT-18)

PDX

Rapid-Deployment Quad Gigabit LTE Powerhouse

The PDX has a quad-cellular router, antennas, and batteries all seamlessly integrated into a rugged enclosure. For even more cellular connections and frequencies, the PDX is capable of integrating SpeedFusion Engines.

Ruggedized Portable One-Device Cellular Connectivity
2x GE WAN ports
7x GE LAN ports
4x LTE-A modem (Global/CAT-12)
2.5 Gbps Router Throughput

Product code:

PDX-LTEA-R-T (America / CAT-12)

PDX-LTEA-K-T (Global / CAT-12)

Pepwave MAX Transit Series

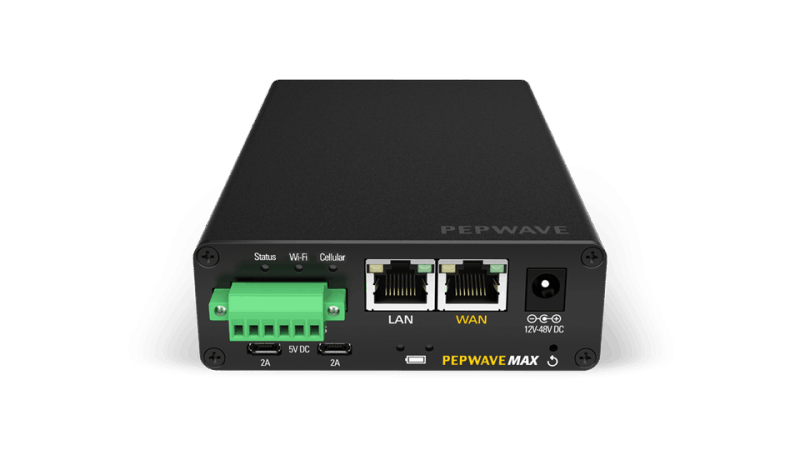

MAX Transit

Single LTE-A Pro Router ideal for transportation deployments.

With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and embedded cellular modem, the MAX Transit is ready to deliver fast, reliable Wi-Fi hotspots to your passengers.

Single-LTEA Router for Transportation Wi-Fi
1x Embedded 4G LTE-A Pro Modem
1x Ethernet WAN
802.11 ac/a/b/g/n
Full antenna set

Product code:

MAX-TST-E-T (Europe / Int. /CAT-4)

MAX-TST-LTEA-W-T (Worldwide /CAT-6)

MAX-TST-LTEA-P-T (Asia Pacific/CAT-6)

MAX-TST-LTEA-R-T (America /FirstNet /CAT-12)

MAX-TST-LTEA-K-T (Global* /CAT-12)

MAX-TST-GLTE-G-T-PRM (Global /CAT-18)

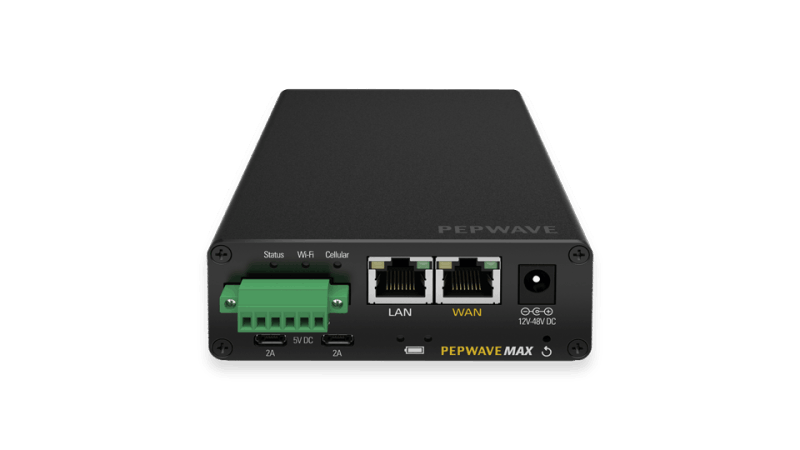

MAX Transit Pro

Wait no more, experience the new fast

With a compact form factor, simultaneous dual-band Wi-Fi 6, and two embedded LTE modems, the MAX Transit DUO is ready to deliver fast, reliable connectivity in transportation and public safety deployments

Multi-LTE Router for Transportation Wi-Fi
2 x Embedded 4G LTEA Modem
1x Ethernet WAN
Wi-Fi 6 2x2 MIMO
2x USB-C Power Input
Full antenna set

Product code:

MAX-TST-PRO-DUO-LTEA-USR-T-PRM (N-America)

MAX-TST-PRO-DUO-LTEA-D-T-PRM (APAC & EMEA)

MAX-TST-PRO-DUO-LTEA-E-T-PRM (EMEA)

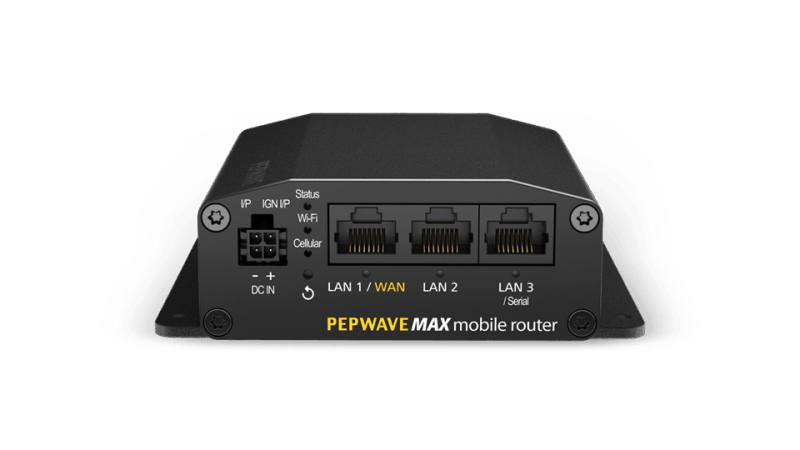

MAX Transit Mini

Single Cellular FirstNet & Band 71 Ready Router

The Transit Mini supports both band 71 and FirstNet, providing additional coverage as the situation demands. Band 71 operates at a 600MHz frequency that travels twice as far and works four times better in buildings than conventional LTE bands. This means Band 71 provides better coverage in remote areas as well as indoors. FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity.

Industrial-Grade 4G LTE Router
1x Embedded 4G LTE Modem (America/FirstNet Ready)
1x Optional Ethernet WAN
Optional WAN Failover
802.11bgn Wi-Fi AP
GPS/Fleet Tracking
Full antenna set
1-Year PrimeCare Subscription

Product code:

MAX-TST-MINI-LTE-E-T-PRM (EU/ Int. / CAT-4)

MAX-TST-MINI-LTE-F-T-PRM

(America/FirstNet Ready / CAT-4)

UBR - SpeedFusion engine

UBR LTE

Dual-cellular router built to provide unbreakable connectivity at an affordable price.

Dual-cellular router built to provide unbreakable connectivity at an affordable price. Comes with PrimeCare, making it easy to set up SpeedFusion-powered networks.

Unbreakable Connectivity Right Out of the Box
1x GE WAN ports
4x GE LAN ports
2x LTE modem(CAT-4)
120 Mbps Router Throughput
UBR should be under PrimeCare and would need to subscribe PrimeCare annually to enable SpeedFusion and some other features.

Product code:

UBR-LTE-E-T-PRM (Europe/Int./CAT-4)

UBR-LTE-MX-T-PRM

(Latin America/Australia/CAT-4)

UBR-LTE-US-T-PRM (America/CAT-4)

SFE

Unbreakable Connectivity for your system. Plug-n-Play integration.

The SpeedFusion Engine can be easily integrated to your platform. The SpeedFusion Engine allows users to add bonding capabilities to a variety of network setups. Two embedded cellular modems and a wired WAN port give you up to three connections, which can be bonded with unbreakable VPN for faster data uploads and downloads.

Dual Radio
Extended Temperature
2x Embedded LTE Modems
1x USB LAN, 1x Ethernet LAN/WAN
SpeedFusion Bandwidth/VPN Bonding

Product code:

SFE-DUO-LTE-US-ET (US/Americas)

SFE-DUO-LTE-E-ET (Europe/International)

SFE-DUO-LTEA-W-ET (Worldwide)

SFE-DUO-LTEA-P-ET (Asia Pacific)

SFE Cam

Integrated dual-cellular bonding solution for professional video production cameras

The SpeedFusion Engine Cam (SFE Cam) uses SpeedFusion bandwidth bonding technology to combine the reliability and bandwidth of two cellular connections and Wi-Fi, giving you rock solid data link for live streaming*. With redundant SIM slots, the SFE Cam gives you a total of four SIM cards to select from. WAN Smoothing and FEC protect your video stream from the effects of packet loss.

Integrated Dual-Cellular Bonding for Professional IP Cameras
2x Embedded LTE-A Modems (Worldwide)
1x GE WAN, 1xGE LAN, 1x USB LAN
SpeedFusion Bandwidth/VPN Bonding
Anton Bauer Gold Mount / V-mount

Product code:

SFE-CAM-AB-LTEA-W

(Worldwide) Anton Bauer Gold Mount

SFE-CAM-AB-LTEA-P

(Asia Pacific) Anton Bauer Gold Mount

SFE-CAM-VM-LTEA-W

(Worldwide) V-mount

SFE-CAM-VM-LTEA-P

(Asia Pacific) V-mount

Pepwave Max Comparison

Features	Ethernet WAN Ports	LAN Ports	Embedded Modem	Recomm. Users (max)	Stateful Firewall Throughput Mbps	WiFi AP	No of PepVPN/ SpeedFusion Peers	PepVPN Throughput (256-bit AES) Mbps
BR1 Classic	1	2	1	60	100	b/g/n	2/5	20
BR1 MK2	1	4	1	60	100	ac/a/b/g/n	2/5	20
BR1 Mini	1	1-2	1	60	100	b/g/n	2/5	20
BR1 M2M	1	1	1	M2M	100	--	2/5	20
BR1 Slim	1	1	1	60	100	b/g/n	2/5	20
BR1 ENT	1	2	1	150	300	--	2/5/20	60
BR1 Pro	1	4	1	60	120	a/b/g/n	2/5	20
Hotspot	1	1	1	60	100	ac/a/n	2	20
HD2	2	4	2	150	400	ac/a/b/g/n	2/20	55
HD2 mini	1	2	2	150	300	--	2/20	60
HD4	2/5	8/5	4	500	400	ac/a/b/g/n	2/20	120
Transit	1	1	1	150	400	ac/a/b/g/n	2	60
Transit Pro	1	1	2	150	1 Gbps	Wifi 6	2/5	200
BR1 IP55	1	2	1	60	100	ac/a/b/g/n	2	20
BR2 IP55	1	2	2	60	100	ac/a/b/g/n	2	20
BR1 IP67	--	1	1	60	100	b/g/n	2	20
HD2 IP67	1	1	2	150	400	--	2/20	60
HD4 IP67	1	1	4	500	400	--	2/20	120
SpeedFusion Engine	1	1	2	60	100	--	2	20
Transit Mini	1	2	1	60	100	b/g/n	2	20
HD2 Dome	--	1	2	150	400	--	2	60

How can we help you today?
We are just a click away ...

info@advantesco.com

Facebook

Twitter

Pepwave MAX HD series

Multi-cellular powerhouse for mission-critical connectivity

Features of Pepwave Max devices

Approved for UK Public Safety

Unbreakable FirstNet Ready SD-WAN

Peplink / Pepwave Cellular Devices

Pepwave MAX BR1 Series

MAX BR1 Classic

MAX BR1 Mini

MAX BR1 Mini Core

MAX BR1 MK2

MAX BR1 Pro

MAX BR1 ENT

MAX BR1 M2M

MAX BR1 IP67

MAX BR1 IP55

MAX BR1 Pro 5G

Pepwave MAX HD Series

HD2 Mini

HD2

HD1 Dome

HD2 Dome

HD2 IP67

HD4

HD4 IP67

HD4 MBX

PDX

Pepwave MAX Transit Series

MAX Transit

MAX Transit Pro

MAX Transit Mini

UBR - SpeedFusion engine

UBR LTE

SFE

SFE Cam

Pepwave Max Comparison
