Pepwave Access Points

Wi-Fi That Simply Works - Enterprise-grade Wi-Fi for any environment

Peplink has a large selection of Wi-Fi products built for industrial deployments. Weatherproof IP55 and IP67 access points enable you to set up wireless Internet access in the harshest environments. Our outdoor access points can be powered via 802.3at PoE, reducing the number of cables in your deployment. With the Device Connector, you can connect IP cameras and other equipment over long distances or even have devices communicate directly with each other. The Device Connector provides fast and reliable connectivity over Wi-Fi with its unique ability to bond both 2.4GHz and 5GHz channels, while PepVPN ensures that your information is absolutely safe.

Peplink access points are built for scalable multi-site, multi-branch deployments and networking. All your Peplink access points can be remotely configured and managed using the InControl cloud-based central management platform. With InControl 2, you can reduce management costs by centralizing SSID and firmware updates, as well as perform bulk device configuration. Monetize public-facing Wi-Fi networks by using Peplink’s Ad Delivery Service to deliver video advertisements and surveys to clients. With AirProbe, network administrators can remotely monitor their wireless networks and ensure the service quality by performing continuous client simulations and Wi-Fi channel diagnostics.

AP Controller

Software-based AP management
Manage your entire wireless network from your router and easily build a custom captive portal for your business.

AD Delivery Service

Deliver Video Ads and Surveys
Monetize public Wi-Fi service by delivering location-based advertisements. Gather insights with surveys. Easy-to-use interface makes ad delivery a breeze.

AirProbe

Wi-Fi Performance Diagnostics
Record Wi-Fi performance data for review and troubleshooting. Perform automated client testing. Receive notifications for network events as they happen.

Social Wifi

Social Wi-Fi Hotspot
Grow your business by enhancing your visitors’ experience with free, no fuss Wi-Fi access

Seamless Peplink SD-WAN Integration

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network. A single AP supports more than 50 concurrent connections.

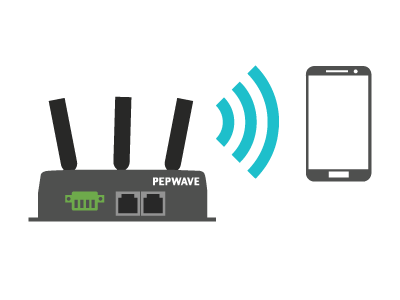

AP One

Fast, Secure, Long-Range Wi-Fi
Wi-Fi access points in numerous form factors, all capable of ad delivery support and centrally manageable via InControl 2.

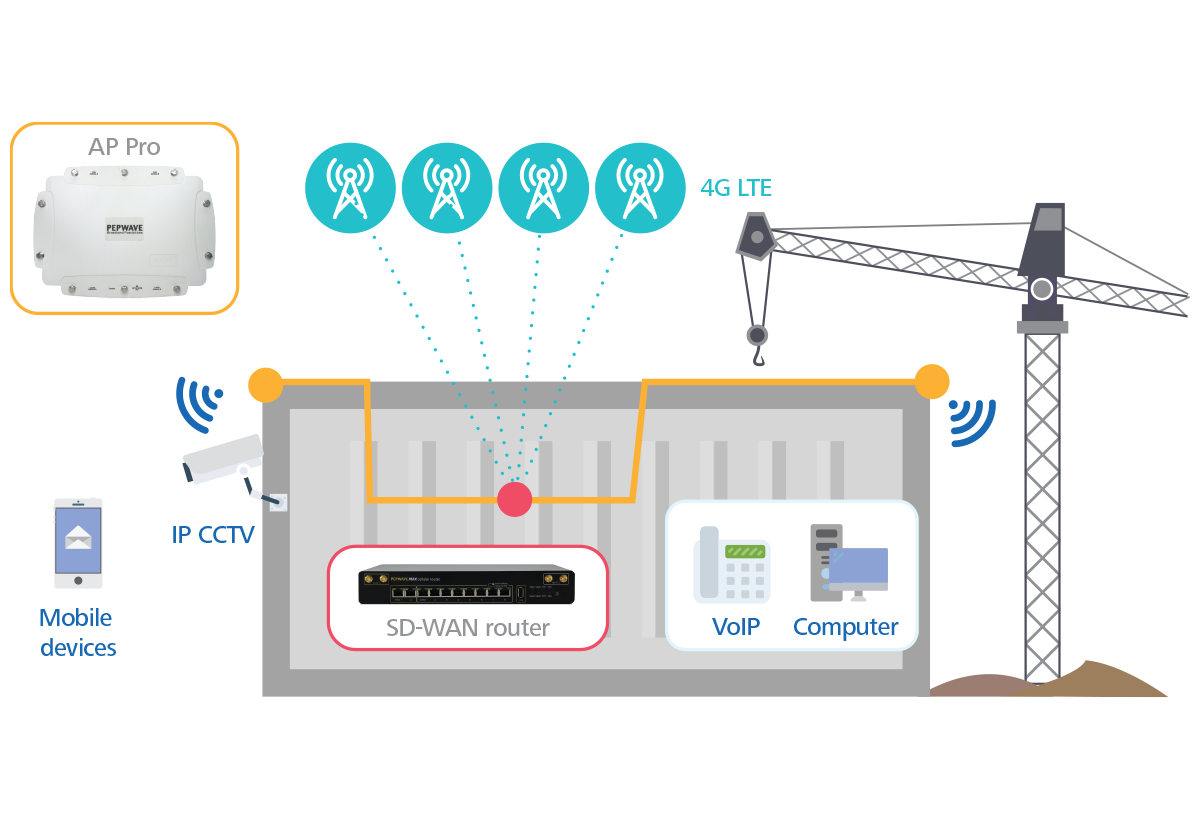

AP Pro

IP67 All-Weather Wi-Fi Solution
Deliver fast and reliable Wi-Fi in even the harshest conditions. Features a sealed, all-metal IP67 enclosure for years of dependable operation.

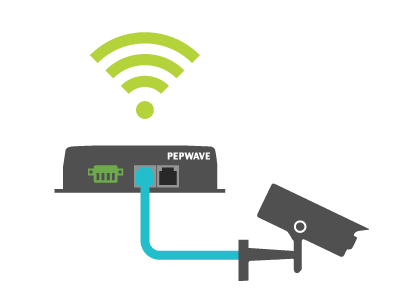

Device Connector

Wi-Fi / Ethernet Adapter
Combine both 2.4GHz and 5GHz channels for maximum bandwidth and reliability. Connect any Ethernet-only device while boosting your Wi-Fi coverage.

Pepwave AP Products

AP One AC Mini

World’s Smallest 11ac wave2 AP

AP One AC Mini is the world smallest 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO). Upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.

802.11ac wave 2 Wi-Fi AP for Business
Simultaneous 802.11ac wave 2/ac/a/n and 802.11b/g/n
Mini Enclosure, 802.3af PoE Input
PoE Injector Available Separately

Product code: APO-AC-MINI

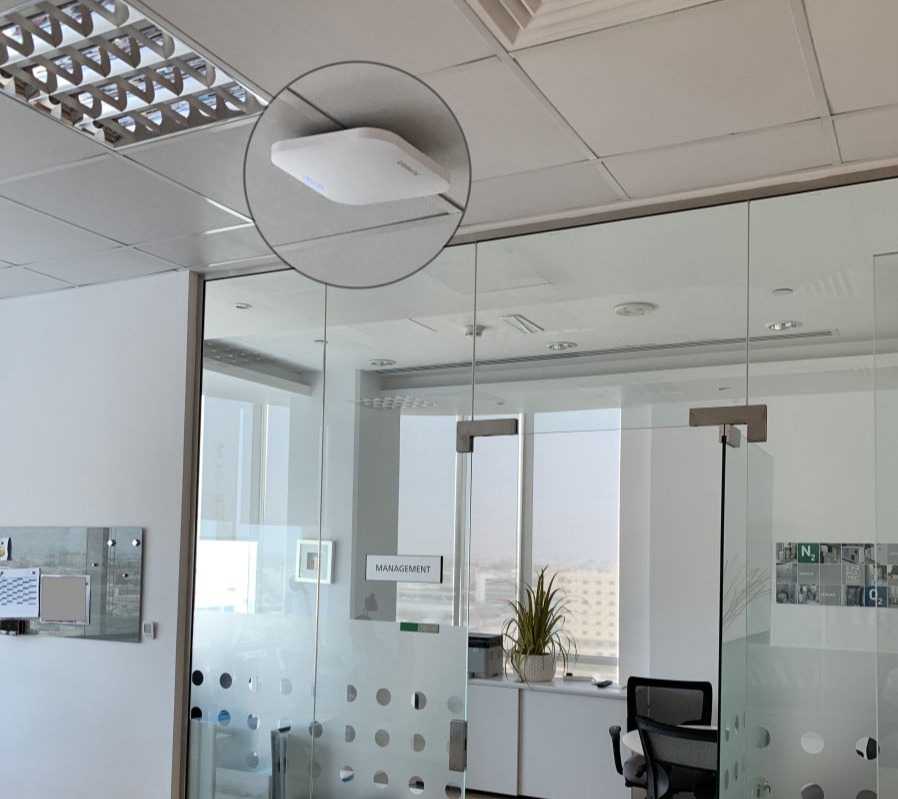

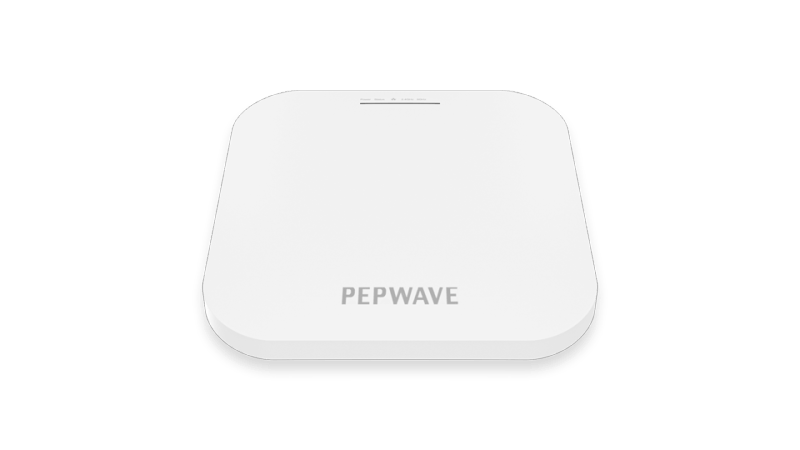

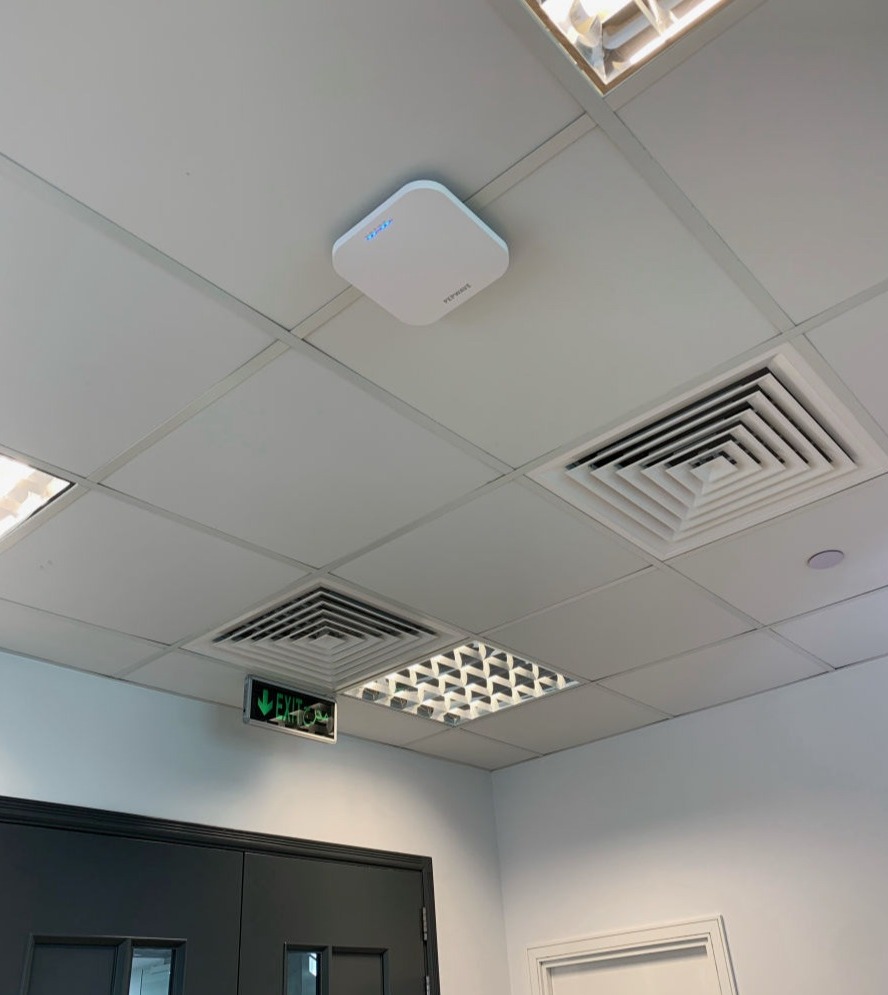

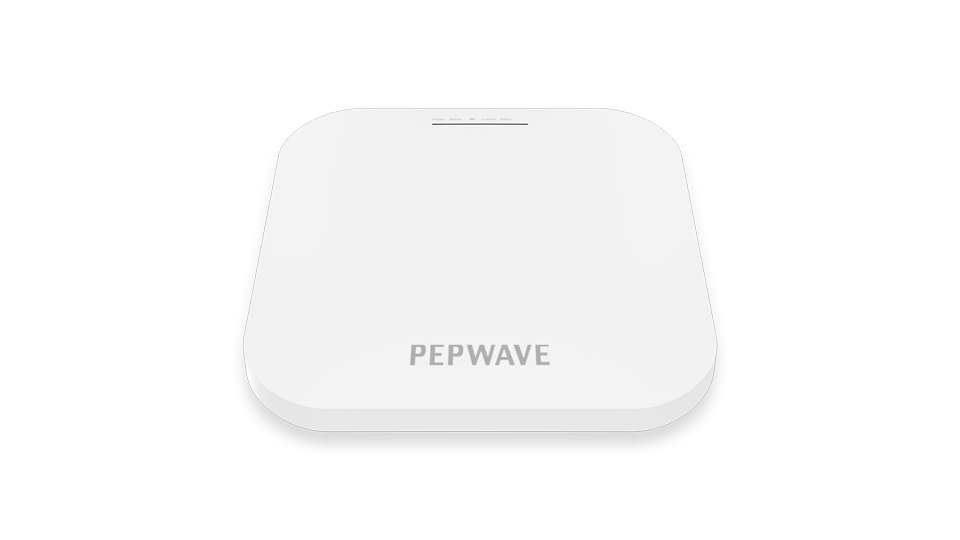

AP One AX

Better Coverage and Speed with Wi-Fi 6

Deploy Anywhere, Manage Centrally, Turnkey or Custom Captive Portals, Enterprise-Grade Fast Roaming, Seamless Peplink SD-WAN Integration.

Dual-Radio Concurrent 2.4 GHz & 5 GHz ( 802.11 ax/n/b/g)
Plenum Rated, Indoor Plastic

Product code: APO-AX

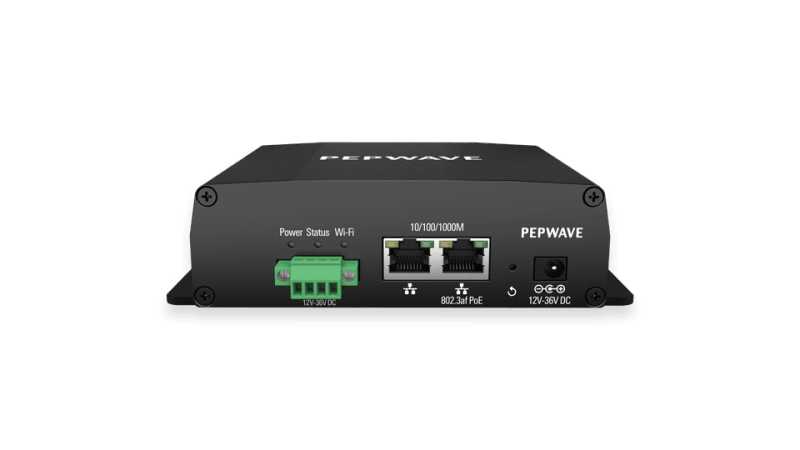

AP One Rugged

Industrial Grade AP

The new AP One Rugged delivers industrial-grade performance, the flexibility to deploy anywhere, easy setup and management. Dual radio access point is geared with two 2×2 MIMO Wifi 5 radios operating in 2.4GHz and 5GHz bands simultaneously.

Professional Wi-Fi AP for Business
Wifi 5, Dual-band Single Radio
1266M (3x3 Mimo)
Rugged Metal Enclosure, 802.3af PoE Input

Product code: APO-AC-RUG

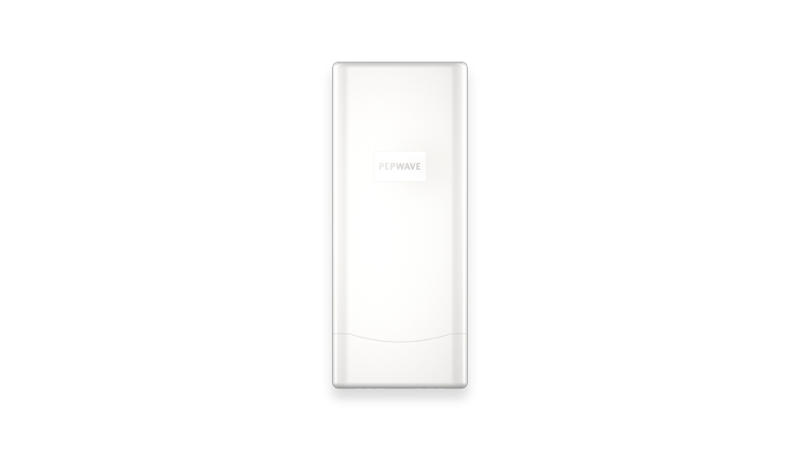

AP One Flex

Super-Tough Outdoor AP

The AP One Flex 802.11ac Outdoor Access Point includes an IP55 enclosure, integrated directional MIMO antenna, supports 16 SSIDs, WPA-2 encryption and more

Simultaneous 802.11ac/a/n and 802.11b/g/n
2x2 MIMO, 2.4 GHz: 300Mbps, 5 GHz: 866Mbps
MIMO directional antennas
IP55 Enclosure
802.3at/ 802.3af PoE Input
3x 10/100/1000M Ethernet Ports with 1x 802.3at PoE Output option

Product code: APO-FLX

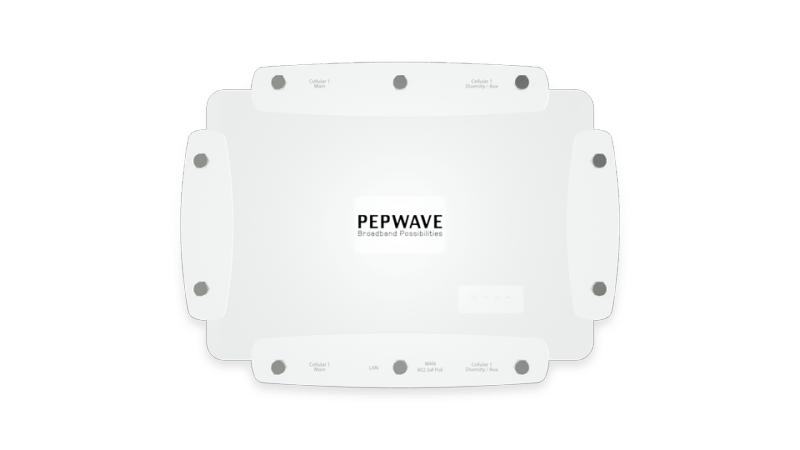

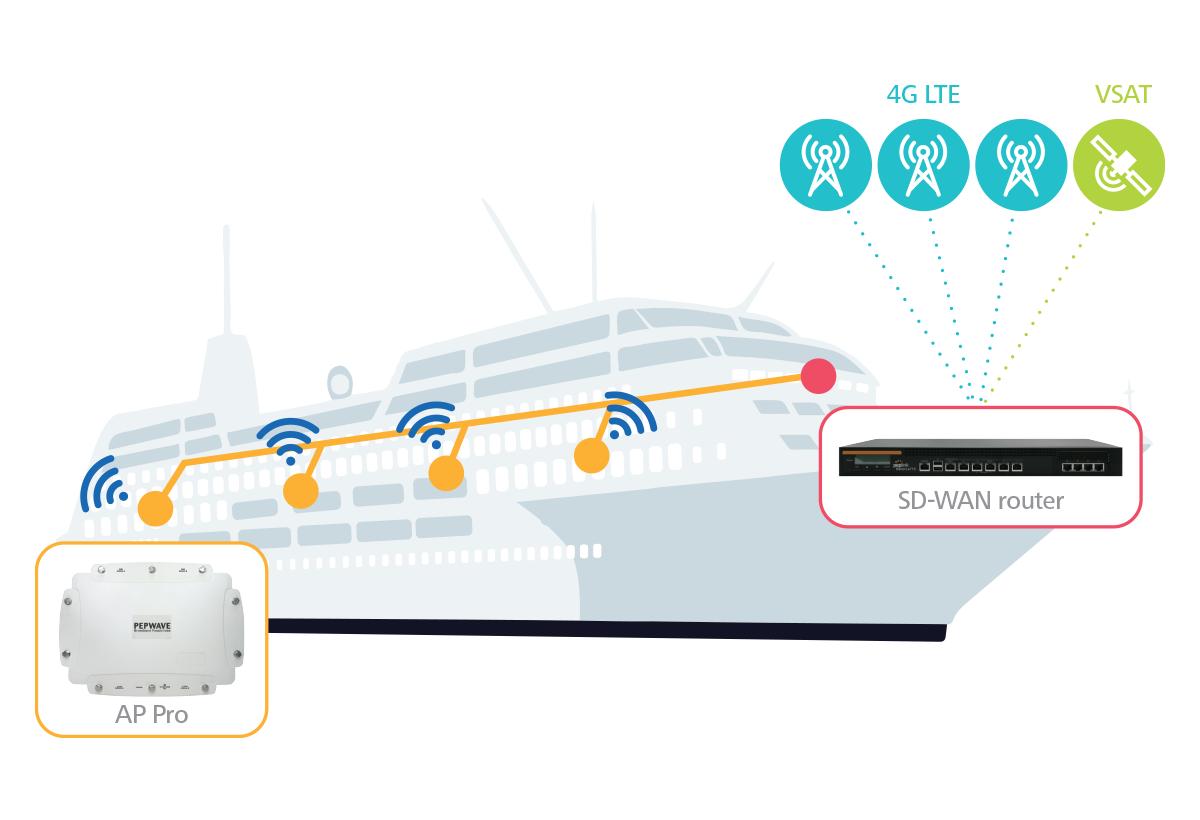

AP Pro AC

IP67 All-Weather Wi-Fi Access Point

Deliver fast and reliable Wi-Fi in even the harshest conditions with the AP Pro AC . The AP Pro’s sealed, all-metal IP67 enclosure stands up to dirt, water, and extreme temperatures for years of dependable operation in industrial, public safety, transport, and other applications. Built-in PoE gives you more installation options and reduces deployment costs. And intuitive console- and cloud-based control makes configuration and maintenance simple for everyone.

Industrial-grade Access Point
802.11 a/b/g/n/ac 1750 Mbps Access Point
Simultaneous 2.4 & 5 GHz
802.3af PoE Input
IP67 Outdoor Metal Enclosure

Product code: APP-AGN3

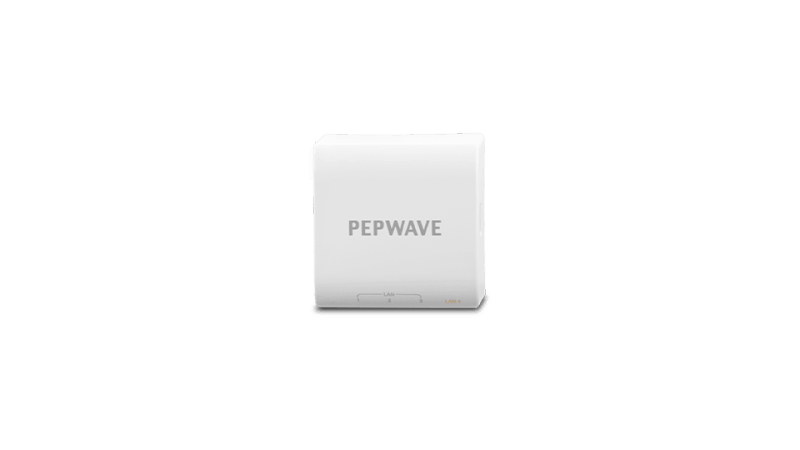

AirProbe

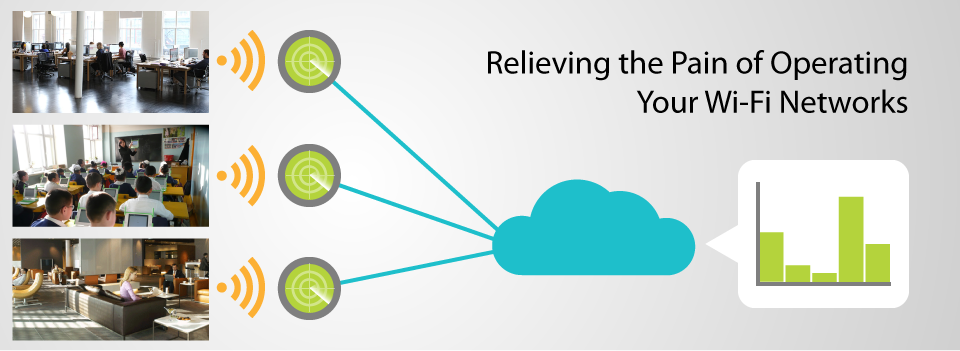

Relieving the Pain of Operating your Wi-Fi Networks

We have a wide array of tools to solve your Wi-Fi troubles. AirProbe can analyze Wi-Fi signals and perform automated testing. InControl cloud Wi-Fi diagnostic platform aggregates and stores the information from all your AirProbes, enabling you to view the Wi-Fi environment on any site, at any point in time. Best of all, this solution works with any Wi-Fi infrastructure. Check out the details.

Wi-Fi analysis probe
Supports 802.11a/b/g/n
First year cloud service included

Product code:

PRB-11N

PRB-AC2

PRB-AC3

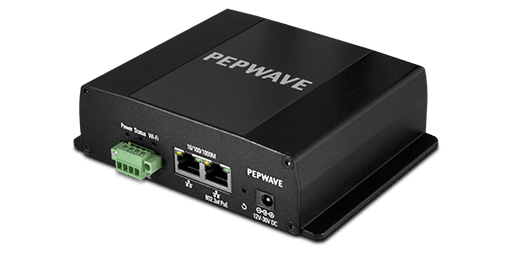

Device Connector Rugged

Vendor Neutral Wireless Bridge. Extends SpeedFusion to Wi-FI

The Device Connector Rugged enables Ethernet devices to access wireless networks with unbreakable reliability. Using our signal bonding technology, Ethernet devices can connect using the combined bandwidth of 2.4GHz and 5GHz frequency Wi-Fi in a single LAN connection. The Device Connector is compatible with any access point, so you can just drop it in and go – no network reconfiguration or device upgrades needed.

Carrier Grade 802.11ac Wireless Client Bridge
802.11ac/a/b/g/n, Dual-band Single Radio
1750M (3x3)
Rugged Metal Enclosure
802.3af PoE Input

Product code: DCS-RUG

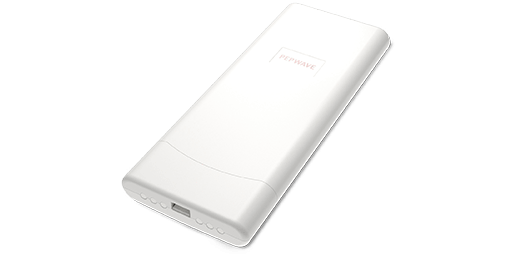

Device Connector IP55

Vendor Neutral Long Range Wireless Bridge

The Device Connector IP55 enables Ethernet devices to access wireless networks with unbreakable reliability. Using our signal bonding technology, Ethernet devices can connect using the combined bandwidth of 2.4GHz and 5GHz frequency Wi-Fi in a single LAN connection. The Device Connector is compatible with any access point, so you can just drop it in and go – no network reconfiguration or device upgrades needed.

Carrier Grade 802.11n Outdoor Wireless Client Bridge
300M, 802.11ac/a/b/g/n 400mW Tx Power
IP55 Outdoor Enclosure
Passive PoE Input
PoE Injector Available Separatelyt

Product code: DCS-GN-IP55

AP Model Comparison

Features	Wi-Fi Standard	2.4GHz	5GHz	Ethernet Ports	Antenna Type
AP One Enterprise	802.11ac/a/n and 802.11b/g/n	450Mbps	1300Mbps	1	Built-in Omni
AP One AC Mini	802.11ac wave 2/ac/a/n and 802.11b/g/n	300 Mbps	866Mbps	1	Built-in Omni
AP One In-Wall	802.11a/b/g/n	300 Mbps	300Mbps	1x FE Uplink 4x FE	Built-in Omni
AP One Rugged	802.11ac/a/n and 802.11b/g/n	450Mbps	1300Mbps	2	External Omni
AP One Flex	802.11ac/a/n and 802.11b/g/n	300 Mbps	866Mbps	3x GE	Built-In, Directional: 2.4GHz (65° Horizontal x 60° Vertical), 5GHz (70° Horizontal x 30° Vertical)
AP Pro 300M	802.11 a/b/g/n	300 Mbps	300 Mbps	1	2 x Female N-Type Connectors
AP Pro Duo	802.11 a/b/g/n	300 Mbps	300 Mbps	1	4 x Female N-Type Connectors
AP Pro AC	802.11 a/b/g/n/ac	450 Mbps	300 Mbps	2	3 x Female N-Type Connectors

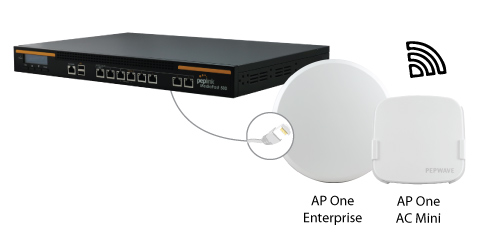

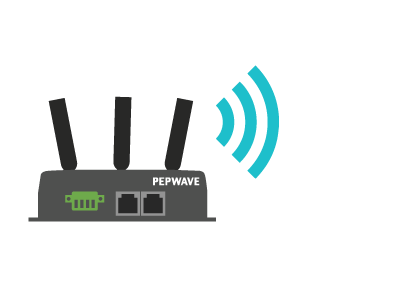

AP Controller

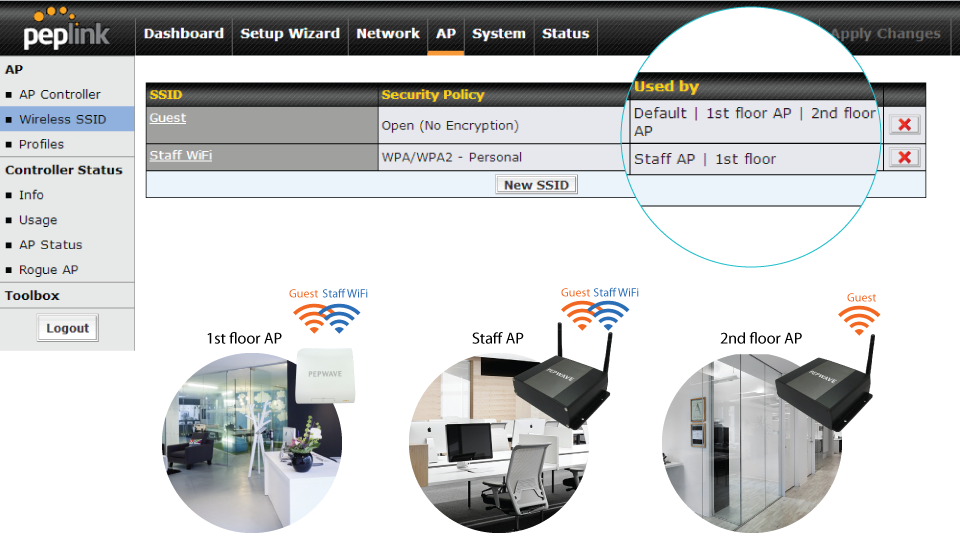

Peplink’s AP Controller, a software-based AP management tool built into all Peplink Balance and selected Pepwave MAX routers, lets you manage your entire wireless network from your router and easily build a custom captive portal for your business. Peplink’s AP Controller works seamlessly with the AP One and AP Pro, providing advanced, enterprise AP management that’s plug-and-play easy. Setup is fast and access points are detected automatically, giving you immediate control over configuration, usage, and much more. You also get in-depth reporting that’s available 24/7 on all your devices, so you’re always up-to-date.

With the Peplink AP Controller’s array of included reports, detailed Wi-Fi network statistics are just a click away. Whether you’re working directly from your Balance router or on a tablet or smartphone halfway around the world, you get instant access to client statistics and data usage, broken down by access point, signal frequency, and time interval. The AP Controller also includes a client event log that gives you at-a-glance insight into user behavior, as well as alerts to events that require further investigation, such as suspected rogue access points.

With Auto Provisioning, Peplink’s AP Controller can scan your network for new access points and configure them automatically. And it keeps an eye out for rogue access points and logs suspicious additions to your network, giving you extra peace of mind. You can even remotely push firmware updates to any or all of your access points.

Which Peplink/Pepwave devices support Peplink's AP Controller?

Our AP Controller is available in two versions: AP Controller Standard and AP Controller Pro.
Balance 20/30/30 LTE/50/One/210/310, as well as the MediaFast 200/500 and the Pepwave MAX 700/HD supports AP Controller Standard.

Balance 305/380/580/710/1350/2500 supports AP Controller Pro.

AP Controller Standard supports one configuration profile (with multiple SSIDs), meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. AP Controller Pro supports multiple configuration profiles coupled with multiple SSIDs, and you can manage remote APs outside the local physical LAN.

Licenses are available separately for AP Controller Pro to manage additional AP.

Can I manage APs from other vendor with Peplink's AP Controller?

No, Peplink’s AP Controller supports the Pepwave AP One and AP Pro only.

I have a Peplink Balance or Pepwave MAX 700/HD2, but the AP Controller feature is not available.

Peplink’s AP Controller is supported on Peplink Balance 305/380/580/710/1350/2500 routers running Firmware 5.3.9 or above. The AP Controller is supported on Peplink Balance 20/30/210/310 routers and Pepwave MAX 700/HD routers running Firmware 6.1 or above. To use Peplink’s AP Controller on devices running previous firmware versions, as well as take advantage of the latest features and improvements, please upgrade your device’s firmware to the latest version.

Can I manage my Pepwave APs with both InControl and AP Controller at the same time?

No. All Pepwave AP One and AP Pro devices will be automatically managed by Peplink’s AP Controller when the feature is enabled. To use InControl for management, first disable the AP Controller feature on your Peplink Balance/Pepwave MAX.

Airprobe

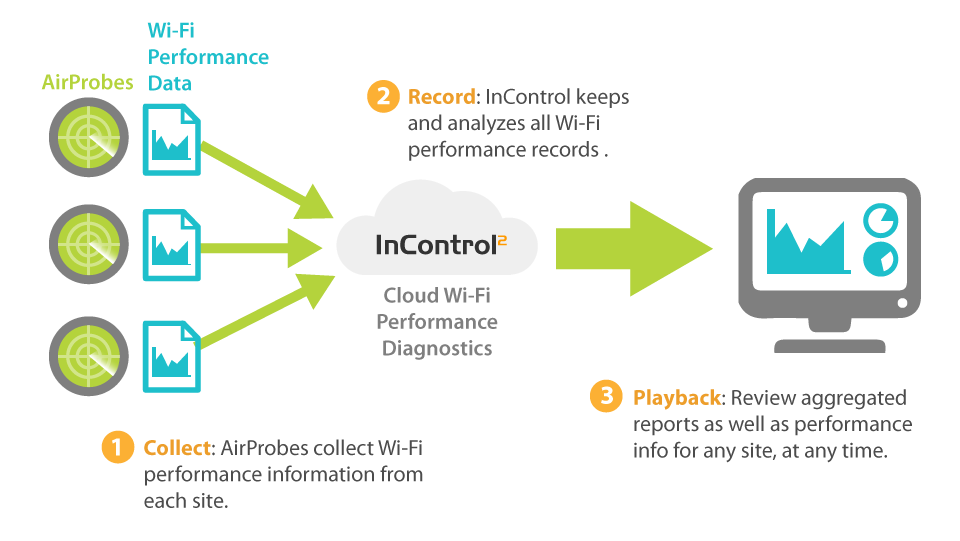

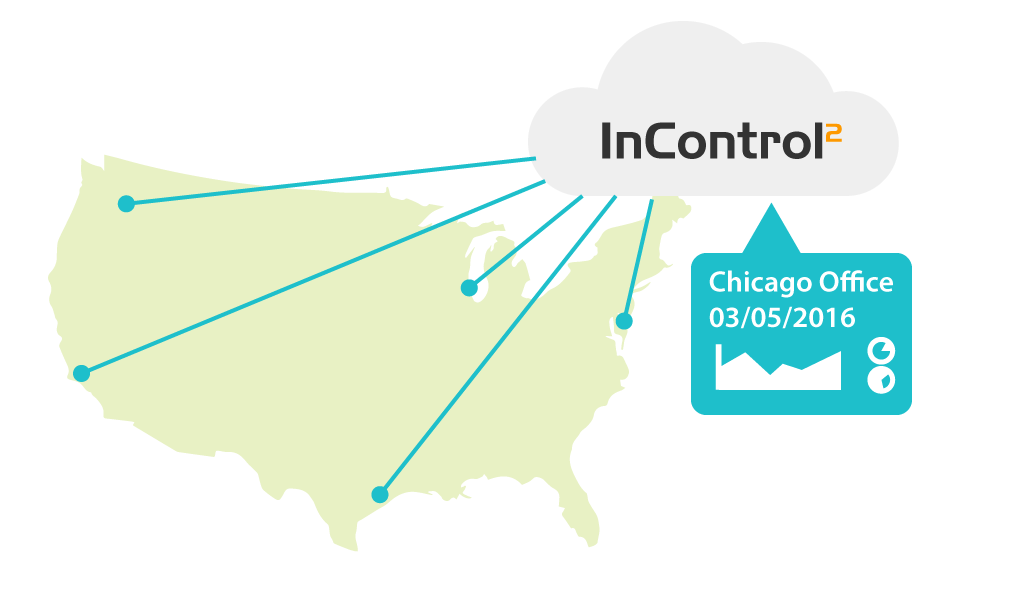

The InControl cloud Wi-Fi diagnostic platform lets you survey what’s going on. Easily view the status of all your networks on one screen. Examine reports from all AirProbes, all presented in one place. Play back the Wi-Fi performance info for any AirProbe at any point in time. And never worry about losing your past history: if any device gets reset, the Wi-Fi performance records remain on the cloud for up to 30 days, giving you information to assist in your troubleshooting.

Peplink has a wide array of tools to solve your Wi-Fi troubles. AirProbe can analyze Wi-Fi signals and perform automated testing. InControl cloud Wi-Fi diagnostic platform aggregates and stores the information from all your AirProbes, enabling you to view the Wi-Fi environment on any site, at any point in time. Best of all, this solution works with any Wi-Fi infrastructure.
Air Monitor puts channel utilization at your fingertips. Easily see the Wi-Fi utilization, channel utilization, packet distribution, and signal strength for each Wi-Fi device. Find out which devices are connected to which hotspots at a glance.
